Chemically Etched Metal Components

Chemically Etched Metal Components
Chemically Etched Metal Components
Product Code : CE13
Brand Name : LIFE LINE CIRCUITS
Trade Information
  • Price
  • Minimum Order Quantity
  • 100 Pieces
  • Payment Terms
  • Cash on Delivery (COD), Others
  • Main Domestic Market
  • All India
Product Description

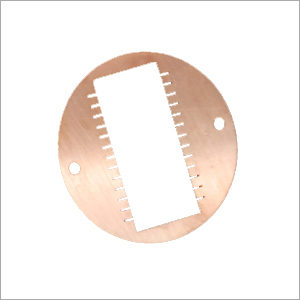

Chemically Etched Metal Components

We are one of the leading manufacturers and suppliers of a wide range of Chemically Etched Metal Components. These are widely used in various applications in different sectors of electrical & electronics, aerospace, mechanical & automobiles, name plates and stencils. These components are manufactured using high quality materials along with the latest methodology in sync with the International standards. We offer these Chemically Etched Metal Components in various specifications at very reasonable prices as per the need of the clients.

Specifications:

  • Sheet Metal Components are made by piercing and blanking.
  • Tool making is costly maintenance is difficult. Frequent grinding, polishing have to be done to maintain tool quality.
  • Storing tool is space consuming.
  • Change of design require another tool.
  • Alternately sheet metal components are done by chemical milling process.
  • The design is transferred into Photo film form and stored. Sheet metals are then photographically coated and the required pattern is masked and the other portions which are bare metal areetched away leaving behind the required pattern. By this method you can get a burr free part.


Production capability

Metals

Copper &Copper alloys,Nickel &NickelAlloys,Stainless steel,Spring Steel, M S, Kovar, Aluminium, & Silver etc.

Metal thickness

from 0.025mm to 1.00mm

Contour

Any contour shape possible

Three Dimensional configuration

Possible

Taper square openings & Circular openings

Possible

Chemically engrave the Identification Number, Company Logo & Text etc.

Perforated Metal Components.

Gen. Tolerance: +/- 0.1mm depending on the thickness.

Advantages

  • Burr free components
  • Minimum Photo Tool cost
  • Metal thickness as low as 25 microns
  • Maintenance and storage of tool is very easy.
  • Modification in existing photo tool is possible.
  • Lead time is less as compared with Mechanical process
  • No change in Mechanical Chemical properties.
  • No Mechanical & thermal Stress.
  • Ideally suitable for R& D, Prototype, Small & Large batch quantity.
  • Complex designs are easily produced from inexpensive  photo tool.

Applications

  • Aerospace
  • Electrical & Electronics
  • Communication
  • Mechanical & automobiles
  • Medicals
  • Name Plates & Stencils
  • Thermals
  • Decorative Plates etc.
